P0521 Code on Chevy: Oil Pressure Sensor Performance on Silverado and Tahoe, GM Bulletins and Cost

This guide explains how GM checks oil pressure, the causes in the order to check them, the GM bulletins filed with NHTSA for P0521, repair costs from RepairPal, and whether it is safe to drive. Every bulletin detail below comes from GM documents on NHTSA’s site.

If your truck also has a cam timing code, read our P0011 code guide, since oil pressure and oil condition affect cam timing too. For misfires that can follow engine wear, see our P0300 code guide. All of our code guides are on the trouble codes hub, and our free VIN decoder confirms your model year and engine, which decides which GM bulletin applies.

What Does P0521 Mean on a Chevy?

The important point is that “sensor performance” does not mean the sensor is bad. It means the reading is suspect. GM bulletin 24-NA-173 notes that technicians may find “the engine oil pressure sensor or ECM was replaced on a prior visit for the same concern,” and that the real cause may be low oil pressure at idle from a stuck relief valve inside the oil pump. That is why GM tells technicians to confirm pressure with a mechanical gauge.

On some newer GM engines, including the 1.2L turbo in the Trax and Trailblazer, the oil pump is variable and controlled by an oil pressure control solenoid valve, so P0521 can also appear with P06DD or P06DE, which point to the oil pump control.

P0521 Symptoms on a Chevy

• Check engine light with P0521 stored, sometimes turning off and coming back.
• An oil pressure warning on the driver information center or a low reading on the gauge, especially at a hot idle.
• An oil pressure gauge that reads normal while the code is set, which can point to the sensor or wiring.
• A code that appears soon after an oil change, which GM links to the filter or oil level on some older V8s.
• Engine noise such as ticking or knocking if pressure really is low. Treat this as serious.

Common Causes of P0521 on a Chevy (Check in This Order)

1. Oil Level Too Low or Too High

Every GM bulletin for P0521 starts here. Bulletin 20-NA-161 tells technicians to “confirm the oil level is at the full mark and not overfilled.” Low oil can drop pressure at idle, and overfilled oil can foam and give unstable readings. Check it on level ground with the engine off for a few minutes.

2. Wrong Oil Filter or Oil After a Recent Change

GM bulletin PIP5276E covers 2007 to 2013 Silverado, Sierra, Tahoe, Suburban, Avalanche, Express and other trucks and SUVs with Gen IV V8 engines, where P0521 or a low oil pressure warning showed up, in some cases after an oil change. GM tells technicians to confirm the engine has a PF48E type oil filter, check that the engine was repaired under the oil consumption bulletin 10-06-01-008 where needed, and inspect the left rocker cover baffle for leaks. If P0521 appeared right after an oil change, ask what filter and how much oil went in, and use the oil grade in your owner’s manual.

3. Oil Pressure Sensor Connector or Wiring

A loose plug, oil soaked connector, damaged pin or chafed harness can make a good sensor read wrong. GM bulletin 24-NA-021 for the 1.2L turbo Trax and Trailblazer lists an “engine wiring harness issue” as one cause and tells technicians to test resistance between the sensor and the ECM while moving the harness.

4. The Oil Pressure Sensor

The sensor itself can fail. It is the cheapest part in the system, which is why it gets replaced first so often. GM’s advice is to follow the P0521 diagnostic chart to rule out “electrical or oil pressure sensor concerns” and then test mechanical pressure, rather than fitting a sensor and hoping. If a new sensor did not fix it, move on to the pump.

5. Stuck Oil Pump Pressure Relief Valve

This is the cause GM documents most for late model trucks. Bulletin 24-NA-173 covers the 2019 to 2024 Silverado 1500 and Sierra 1500 with the L84 5.3L and L87 6.2L V8s, plus the Tahoe, Suburban, Yukon and Escalade models listed in the bulletin. GM says a stuck relief valve “could cause low oil pressure at idle.” The test must be done at a hot idle with a mechanical gauge, and GM says a reading “below 20 psi when measured at the oil sensor port” points to the relief valve. If the valve is stuck, the fix is a new oil pump.

Bulletin 20-NA-161 describes the same sticking relief valve on the 2019 to 2020 Silverado 2500 and 3500, Sierra 2500 and 3500, Express and Savana with the 6.0L V8. GM adds a warning: if pressure is low, the number 1 main bearing must be inspected, and damage there can mean a new crankshaft and bearings or a new engine.

6. Worn or Broken Oil Pump

For the 2014 to 2016 Silverado and Sierra with the 4.3L, 5.3L and 6.2L, plus the 2015 to 2016 Tahoe, Suburban, Yukon and Escalade, GM bulletin PIP5308A covers P0521 with P06DD and low oil pressure where diagnosis led to an oil pump with a broken slide. GM tells technicians to replace the pump, clean vane pieces and debris out of the oil pan and pickup tube, and inspect the bearings if a lot of metal debris is found.

7. Internal Engine Wear

Worn main or rod bearings let oil escape and lower pressure. This is the most expensive cause and the one you most want to catch early. It is also why driving on a real low pressure condition is a bad idea.

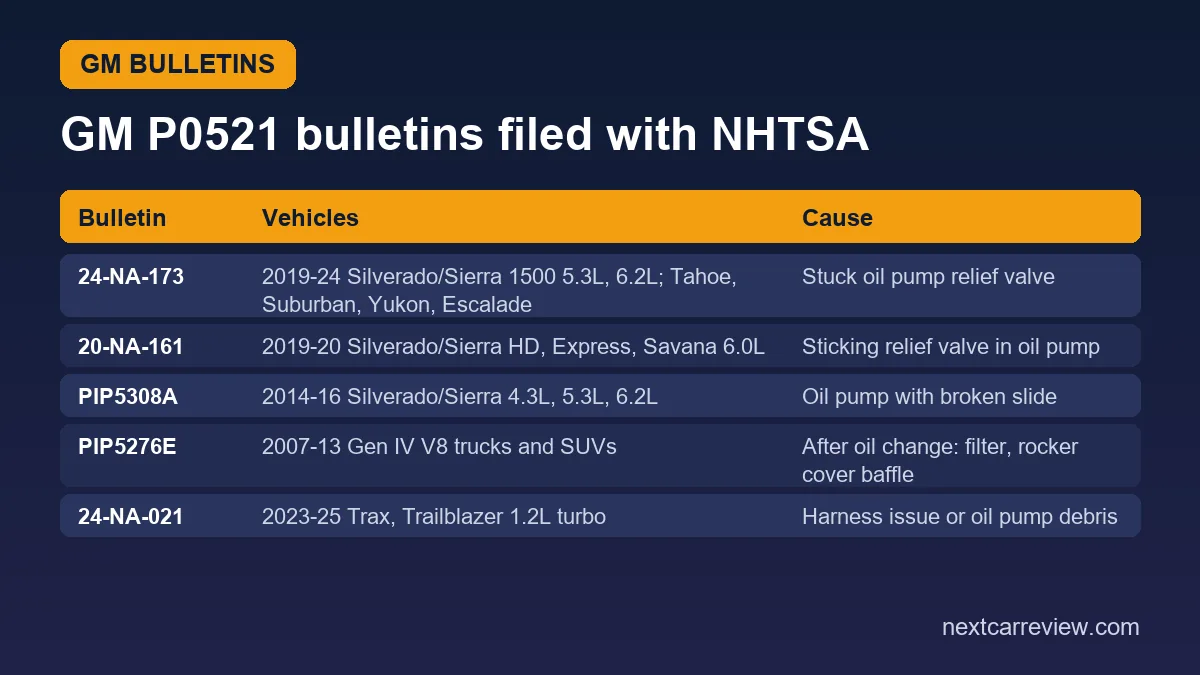

GM Service Bulletins and Recalls for P0521

We found no NHTSA safety recall for P0521 itself. GM has filed several service bulletins with NHTSA that name P0521 directly. Bulletins are repair guidance for dealers, not free repairs by themselves, but work done under your warranty follows them.

Recall 25V274 is listed because it covers the same 6.2L trucks, not because GM ties it to P0521. Any open recall is repaired free, so check your VIN at NHTSA or with a Chevrolet dealer.

P0521 on the Silverado, Tahoe, Suburban and Trax

P0521 on the Chevy Silverado 1500

For a 2019 to 2024 Silverado 1500 with the 5.3L or 6.2L, bulletin 24-NA-173 is the one to ask about. Insist on a mechanical pressure test at hot idle before a second sensor is fitted. For 2014 to 2016 trucks, a broken oil pump slide under PIP5308A is documented. For 2007 to 2013 trucks, start with the oil filter and the oil change history.

P0521 on the Chevy Silverado 2500 and 3500

On 2019 to 2020 heavy duty trucks with the 6.0L gas V8, bulletin 20-NA-161 covers a sticking relief valve. If a mechanical test confirms low pressure, the bearing inspection in that bulletin decides whether it is a pump only or a bigger repair.

P0521 on the Chevy Tahoe and Suburban

The Tahoe and Suburban share engines with the Silverado. Models listed in 24-NA-173 or PIP5308A follow the same diagnosis, and 2021 to 2024 6.2L models should also be checked for recall 25V274.

P0521 on the Chevy Trax and Trailblazer

On the 2023 and newer 1.2L turbo, bulletin 24-NA-021 has technicians check the oil pressure control solenoid valve, the sensor wiring and the oil pump for debris, and run GM’s oil pump screening test.

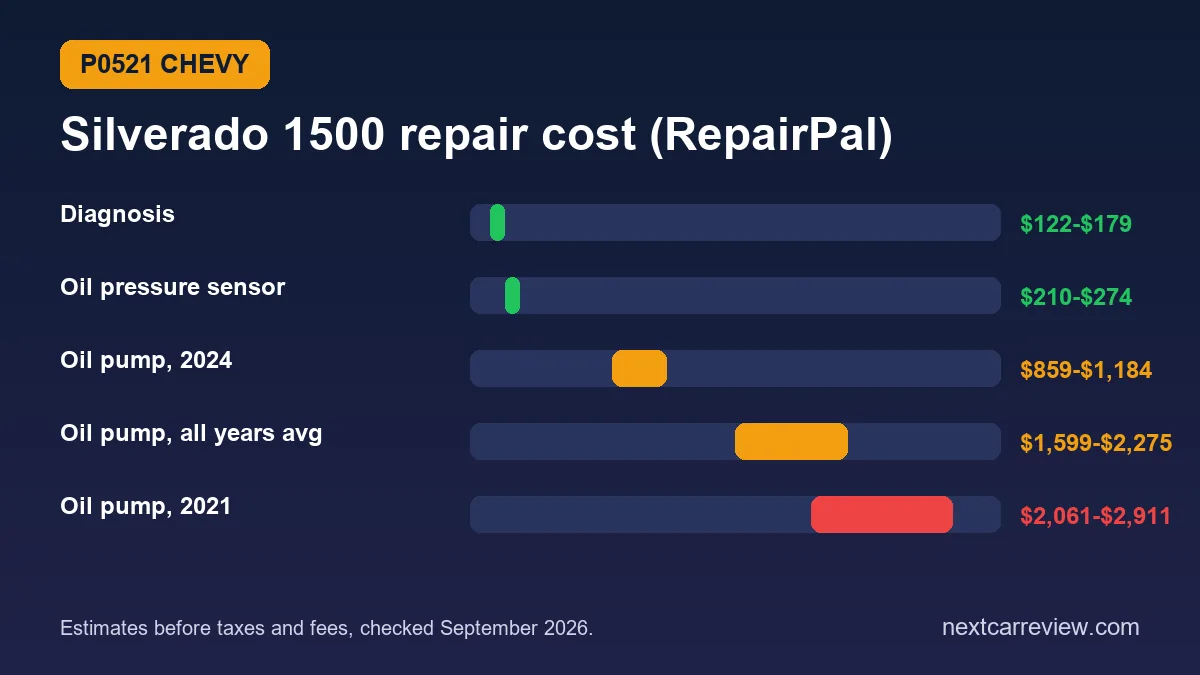

How Much Does It Cost to Fix P0521 on a Chevy?

These are RepairPal estimates for the Silverado 1500, checked in September 2026, before taxes and fees. Prices vary a lot by model year. Work under an active warranty or open recall is free.

The oil pump is costly because the oil pan and front of the engine often have to come apart. Chevrolet’s powertrain warranty, 5 years or 60,000 miles on recent models, covers the oil pump, so check your in-service date and mileage before paying.

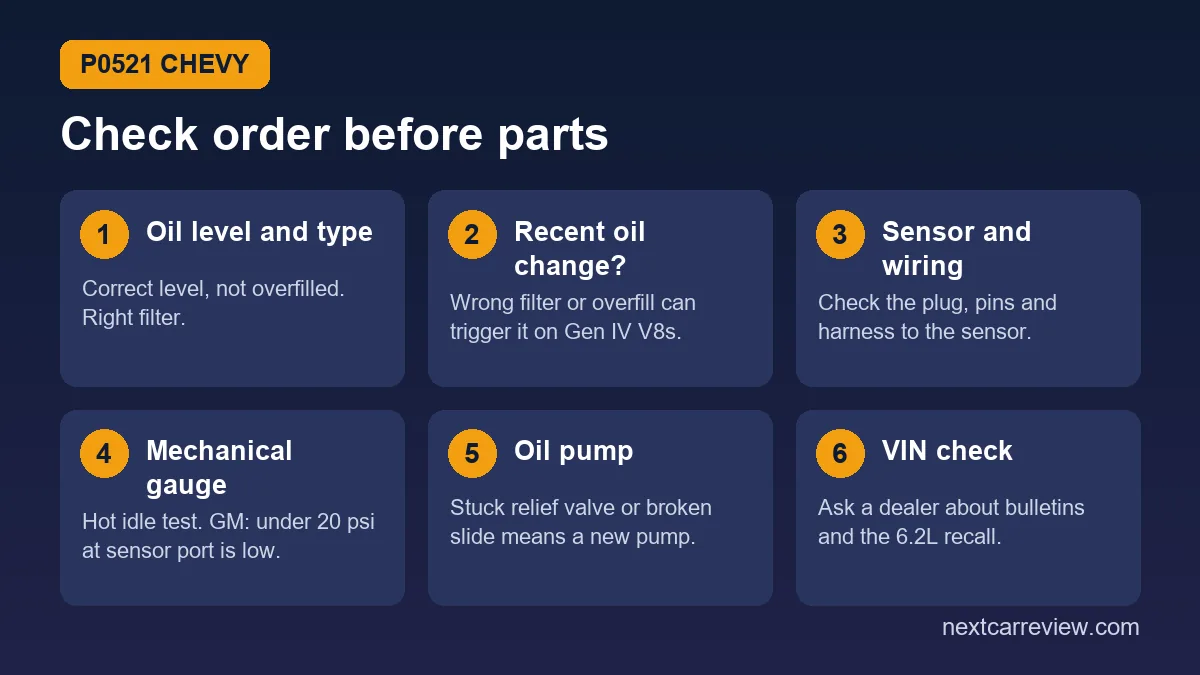

How to Diagnose P0521 on a Chevy

• Check the oil level on level ground. It should be at the full mark, not above it.
• Review the last oil change. Note the filter brand and number and the oil grade, and whether the code appeared after it.
• Read all codes and freeze frame data. Note P06DD, P06DE, P0011 or misfire codes, and the engine speed and temperature when P0521 set.
• Inspect the sensor connector and harness for oil, corrosion, loose pins or chafing.
• Compare the scan tool reading with a mechanical gauge. GM’s test is at a hot idle. On 2019 to 2024 1500 V8s, under 20 psi at the sensor port points to the relief valve. GM notes readings at the oil filter location can differ by up to 10 psi.
• If mechanical pressure is normal, the sensor or wiring is the likely fault.
• If mechanical pressure is low, the oil pump and bearings need inspection following the GM bulletin for your truck.
• Check your VIN for open recalls and remaining warranty before approving a pump.

Can You Drive With a P0521 Code?

Not until you know the real oil pressure. If a mechanical gauge shows normal pressure, a sensor or wiring fault is not harmful by itself, and short trips to a shop are reasonable. If pressure really is low, driving can damage bearings quickly, and GM’s bulletins show that damage can turn a pump job into a crankshaft or engine replacement. If the oil pressure warning comes on while driving, or you hear knocking or ticking, pull over when safe, shut the engine off and check the oil. Have the truck towed if the oil level is fine and the warning stays on.

P0521 vs Related Chevy Codes

• P0520: oil pressure sensor circuit fault, more often wiring or the sensor.
• P0522 and P0523: oil pressure sensor circuit low or high voltage.
• P06DD: oil pressure control circuit stuck off, often with P0521 on 2014 to 2016 V8s and the 1.2L turbo.
• P06DE: oil pressure control circuit stuck on.
• P0011: intake cam timing over advanced, which low oil pressure or dirty oil can cause.

The Bottom Line

P0521 on a Chevy is a question about oil pressure, not a sensor verdict. Check the oil level and filter, inspect the wiring, then get a mechanical pressure test at hot idle. On late model V8 trucks, GM’s bulletins point to the oil pump relief valve, so ask for that test before paying for a second sensor.
