A clogged EGR valve can usually be cleaned rather than replaced: DIY costs little more than a can of EGR or carbon cleaner and a gasket, while a shop bill is mostly labor. RepairPal’s estimator (updated September 3, 2026) puts the average EGR valve replacement at $489 to $632, with labor at $181 to $265, so cleaning a sticking valve early is usually the cheaper fix. This guide covers 2026 prices, when cleaning beats replacement, the P0400-P0409 codes and step-by-step cleaning.
Quick answer: A DIY EGR clean costs the price of a can of EGR or carbon cleaner (or a cleaning kit) and a gasket, plus your time. At a shop, RepairPal puts replacement labor at $181 to $265 and the full job at $489 to $632. If the car is under 2 years or 24,000 miles, ask the dealer about the federal emissions warranty first, because the EPA lists the EGR valve as a covered part.
The exhaust gas recirculation (EGR) valve meters a small amount of exhaust back into the intake. When carbon builds up, the valve sticks, the engine idles rough, and a code such as P0401 sets.
Below are attributed 2026 shop and replacement prices, a clean-or-replace decision table, what each EGR trouble code from P0400 to P0409 means, and the DIY cleaning steps.
What is an EGR Valve and Why Does it Get Dirty?

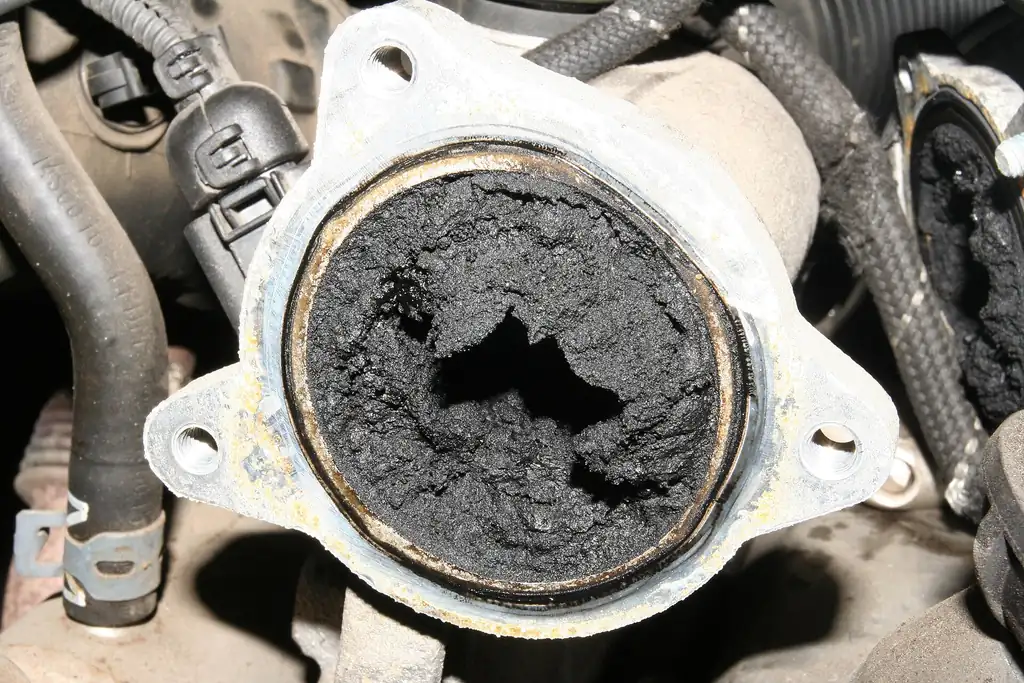

The EGR valve helps your car stay “green.” It takes some of the exhaust and puts it back into the engine. This lowers peak combustion temperature. As a result, it reduces nitrogen oxide (NOx) emissions. However, the exhaust is very dirty and full of soot. Over time, this black soot builds up inside the valve.
As a result, the valve can stick open or closed. Either way the engine runs poorly and the check engine light may come on. Automakers generally do not list a fixed cleaning interval, so cleaning is a repair you do when symptoms or codes appear, not routine maintenance.
The Real Cost of EGR Valve Cleaning in 2026
An EGR job is mostly labor, because the valve has to come off the engine whether it is cleaned or replaced. The figures below come from RepairPal’s estimator, which says its ranges exclude taxes and fees and do not factor in your location.
Professional Mechanic Prices
Most shops charge by the hour. A typical cleaning takes about one to two hours. Shop rates vary widely by region. For reference, RepairPal puts the labor for an EGR valve replacement at $181 to $265 and parts at $308 to $367, and a cleaning involves similar removal work.
Some vehicles are harder to work on than others. For example, a 6.7 Cummins EGR cleaning cost might be higher. This is because the parts are larger and harder to reach. In addition, diesel engines create more soot, which makes the job tougher.
Doing it Yourself (DIY) Prices
If you are handy, you can save a lot of money. You only need to buy an EGR valve cleaning kit or a simple spray. The main saving is the $181 to $265 in labor that RepairPal estimates for removing and refitting the valve.
2026 Price Comparison Table
| Service Type | Estimated Cost (USD) | Time Required | Skill Level |
| Professional Shop | Mostly labor (about $181 – $265 for valve removal, per RepairPal) | 1 – 2 Hours | None |
| Dealership Service | Usually higher than an independent shop | 2 – 3 Hours | None |
| DIY with Spray | Cost of a cleaner spray and a gasket (check retail prices) | 30 Minutes | Beginner |
| DIY with Full Kit | Cost of a cleaning kit and a gasket (check retail prices) | 2 Hours | Intermediate |
Replacement Cost by Vehicle (RepairPal)
According to RepairPal’s EGR valve replacement estimator (estimates last updated September 3, 2026), the job varies far more by vehicle than the national average suggests:
| Vehicle | RepairPal replacement estimate |
| All vehicles (average) | $489 – $632 (labor $181 – $265, parts $308 – $367) |
| Nissan Altima | $257 – $337 |
| Chevrolet Silverado 1500 | $230 – $373 |
| Ford F-150 | $408 – $483 |
| Honda Accord | $291 – $414 |
| Honda Civic | $363 – $455 |
| Honda CR-V | $525 – $637 |
| Toyota Corolla | $683 – $796 |
| Toyota Camry | $684 – $840 |
RepairPal notes that on some models the valve is very easy to reach and on others it is “quite a challenge,” which helps explain why two similar-size sedans can differ by hundreds of dollars.
Clean or Replace? When Each Makes Sense
Because removal labor is the same either way, the decision comes down to whether the valve itself still works. These rules follow the diagnostic advice from Samarins, Pierburg (MS Motorservice) and RepairPal cited on this page:
| Situation | Usually the better move | Why |
| P0401 or P0400, valve moves freely, carbon on the seat and in passages | Clean valve and passages | Pierburg lists carbon deposits restricting the cross-section as a cause of insufficient flow |
| Valve sticks or binds after cleaning | Replace | Pierburg’s remedy for sticking is replacement; Samarins notes a cleaned valve may stick again |
| Vacuum-operated valve will not hold vacuum | Replace | Pierburg: if vacuum is not maintained with a hand pump, replace the valve |
| Electrical codes (P0403, P0405-P0409) | Check wiring, connector and sensor first | These codes point mainly to circuits and sensors, not carbon |
| Blocked EGR cooler (common on diesels) | Cooler service or replacement | A clean valve will not fix a plugged cooler |
| Car within 2 years / 24,000 miles | Ask the dealer first | EPA lists the EGR valve under the federal emissions warranty for defects |
If a shop’s cleaning quote is close to its replacement quote, replacement is usually the better value, since you pay the same removal labor either way and RepairPal advises inspecting and clearing the EGR passages during a replacement anyway.
Finding the Best Cleaner for EGR Valve
If you choose the DIY route, you need the right tools. You cannot just use soap and water. You need a chemical that eats through carbon and soot. Many people ask, “What is the best cleaner for EGR valve?”
Common EGR Cleaners Sold in 2026
- Liqui Moly EGR Cleaner: Liqui Moly sells EGR and intake cleaning sprays for both gas and diesel engines.
- Valvoline EGR Cleaner: Valvoline lists an EGR cleaner spray, sold mainly outside the US, that is sprayed into the intake with the engine running at about 2,000 rpm.
- Mopar EGR Cleaner: Mopar sells an OEM EGR system cleaner (part 68628281AA), aimed mainly at its diesel engines.
- BG EGR Cleaner: BG products are sold mainly through repair shops as part of an induction or EGR cleaning service.
But, you must be careful. Always make sure the cleaner is safe for your specific engine. Specifically, a diesel EGR cleaner is formulated differently than one for a gas engine.
How to Use an EGR Valve Cleaning Kit
Using an EGR valve cleaning kit is a smart move. These kits often come with brushes, gloves, and the cleaning fluid. First, you need to find the valve under your hood. You can look at your car’s manual to find it.
Secondly, you must disconnect the battery. This is for your safety. After that, you unscrew the bolts holding the valve. Spray the EGR valve cleaner onto the black soot. Let it sit for a few minutes. Then, use a small brush to scrub the gunk away.
Similarly, you might need to clean the tubes connected to the valve. If those are clogged, the valve will just get dirty again. Finally, reassemble with a new gasket, clear the code and confirm it does not return.
Dealing with EGR Cooler Cleaning
Sometimes the problem is deeper than just the valve. You might need to look at EGR cooler cleaning. The cooler lowers the temperature of the exhaust gas before it hits the valve. Because it is a “cooler,” it has many small passages. These passages get blocked very easily.
Cleaning the cooler is much harder than the valve. It often involves soaking the whole part in an EGR cleaning solution for many hours. For 6.7 Cummins owners, the 6.7 Cummins EGR cooler cleaning is a common task. Because these engines work hard, they produce a lot of heat and soot.
If you hire a pro for this, expect the cost of EGR valve cleaning and cooler cleaning to jump. Get a written quote first, because cooler work on diesels can take several hours. However, a clean cooler helps the engine control exhaust temperatures. That is why cooler work is usually quoted separately from the valve.
Why Diesel Engines are Different
If you drive a truck, you probably have a diesel engine. Diesel engines use EGR systems a lot more than gas engines. Because of this, they get dirty much faster. You should look for a specific diesel egr valve cleaner.
These sprays, like the EGR valve cleaner diesel version from Liqui Moly, are very tough. They are designed to break down heavy oil and carbon. Also, many diesel owners use an EGR cleaner fuel additive. You just pour this into your fuel tank. While you drive, the chemicals help clean the system from the inside.
But, keep in mind that additives are mostly for prevention. If your valve is already stuck, you will still need to do a manual EGR cleaning.
Common Signs Your EGR Valve Needs Help
How do you know when it is time to spend money on the cost of EGR valve cleaning? Your car will tell you! Listen to your engine and watch how it acts.
- Rough Idling: Does your car shake when you stop at a red light? This is a huge sign.
- Poor Fuel Economy: Are you visiting the gas station more often? A dirty valve wastes fuel.
- Spark Knock: Do you hear a tapping or pinging sound when you accelerate?
- Smell of Gas: A rich-running engine can leave a fuel smell, though a stuck-open EGR valve more often causes rough idle or stalling.
- Failed Emissions Test: In many places, your car must pass a smog test. A faulty EGR system can raise NOx or set a code that causes you to fail.
Acting early keeps the bill down: a DIY cleaning costs a can of cleaner and a gasket, while RepairPal puts the average EGR valve replacement at $489 to $632, with parts at $308 to $367.
Is It Really the EGR Valve? P0401 Causes and a Scan-Tool Test
The most common EGR-related trouble code is P0401, which means the engine computer has detected insufficient EGR flow. Automotive reference site Samarins lists the following causes, so a dirty valve is only one of several suspects.
| Possible cause | Why it matters |
| Clogged or faulty EGR valve; valve stuck closed | The usual target of a cleaning |
| Clogged or restricted EGR passages | A clean valve will not fix blocked passages |
| Plugged EGR cooler | Much harder to clean than the valve, as covered above |
| EGR vacuum switching valve (Toyota) or DPFE sensor (Ford) | Small control parts that can set the same code |
| Carbon on the EGR temperature sensor, vacuum supply problem, or an electrical fault in the valve control circuit | Cheaper to find with a scan tool than to guess |
| Clogged catalytic converter | Also listed as a possible cause |

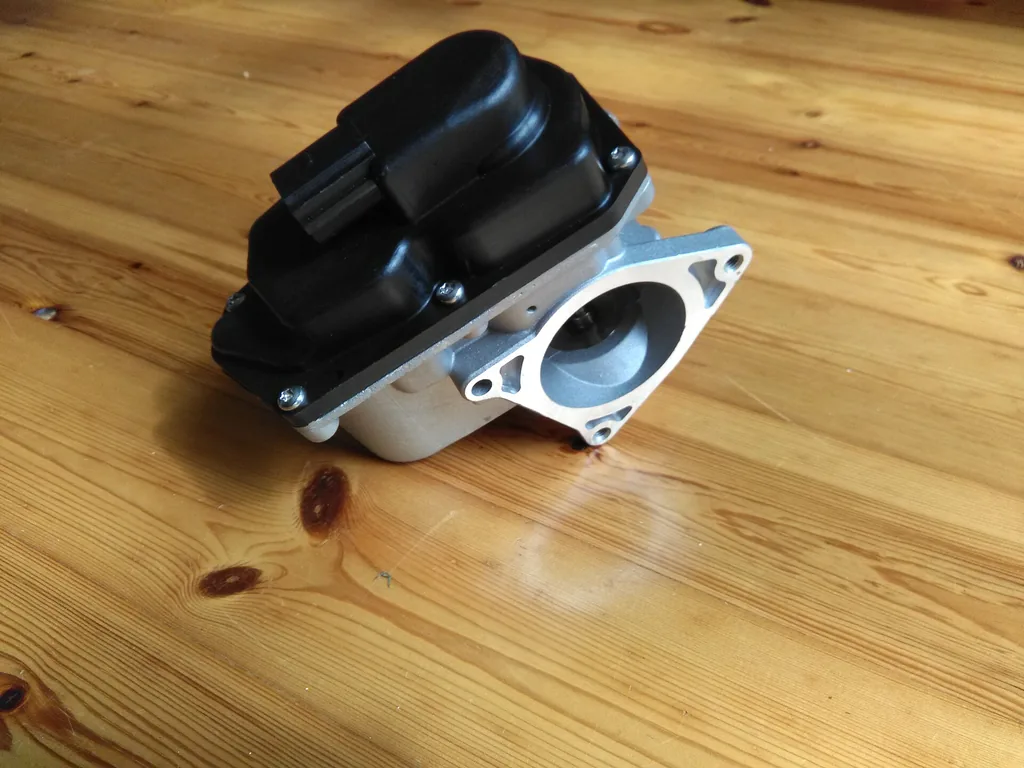

Samarins describes one simple test for an electronically controlled valve: with the engine idling, command the valve open on a scan tool. The engine should stumble, run rough or even stall. If nothing changes, the system is plugged or the valve is not working.
Symptoms can include surging, lack of power, poor fuel economy, rough idle, stalling or a pinging noise, though there may be no symptoms at all. The same source says that if there is carbon buildup anywhere in the EGR system, the whole system usually needs a thorough cleaning, and that even a cleaned valve might stick, so many mechanics recommend replacing it as well.
EGR Trouble Codes P0400 to P0409
P0400 through P0409 are generic OBD-II codes, so the definition is the same on every make, though the parts involved vary. Only the flow codes are usually a cleaning job; the circuit and sensor codes point to wiring, connectors or sensors.
| Code | Definition | Is cleaning likely to help? |
| P0400 | Exhaust Gas Recirculation Flow Malfunction | Sometimes: flow fault, check for a stuck or blocked valve |
| P0401 | Insufficient EGR Flow | Often: carbon in the valve or passages is a common cause |
| P0402 | EGR Excessive Flow Detected | Sometimes: Pierburg lists a valve that does not close completely |
| P0403 | Exhaust Gas Recirculation Circuit Malfunction | Rarely: electrical control circuit |
| P0404 | Exhaust Gas Recirculation Circuit Range/Performance | Sometimes: recirculation outside its set-point range |
| P0405 | EGR Sensor A Circuit Low | Rarely: sensor or wiring |
| P0406 | EGR Sensor A Circuit High | Rarely: sensor or wiring |
| P0407 | EGR Sensor B Circuit Low | Rarely: sensor or wiring |
| P0408 | EGR Sensor B Circuit High | Rarely: sensor or wiring |
| P0409 | Exhaust Gas Recirculation Sensor A Circuit | Rarely: check the sensor, wiring and connector |
Definitions as listed by OBD-Codes.com. Pierburg (MS Motorservice) groups P0403 to P0408 as control-loop and sensor-circuit faults, where the remedy is to check signals, lines and plug-in connections. Samarins lists a clogged catalytic converter among the possible causes of P0401, so if that code appears alongside P0420 (catalyst efficiency below threshold), diagnose both. For other check engine lights, see our OBD-II trouble codes hub.
Specific Tips for Different Engines
Every car is a little bit different. If you have a 6.0 Powerstroke, EGR valve and cooler problems are a well-known weak spot. Owners often clean or inspect the valve whenever sticking symptoms or codes appear.
On the other hand, Prius EGR cleaning comes up often among owners of older models, especially high-mileage cars. A clean EGR system helps a Prius keep its high MPG.
If you own a Chrysler, Dodge or Ram diesel, Mopar sells its own EGR system cleaner (part 68628281AA). Check that any cleaner is approved for your engine before using it.
The Step-by-Step DIY Cleaning Process
The steps below are a general outline; your service manual gives the exact procedure and torque values.
- Step 1: Gather your tools. You need a wrench set, a screwdriver, and your best cleaner for EGR valve.
- Step 2: Ensure the engine is cool. Never touch a hot engine!
- Step 3: Remove the electrical connector from the valve. Be gentle with the plastic clips.
- Step 4: Unscrew the mounting bolts. Keep them in a safe place so you don’t lose them.
- Step 5: Check the gasket. If the gasket is torn, you need a new one. They are very cheap.
- Step 6: Spray the EGR cleaner into the valve openings. Avoid getting liquid on the electrical parts.
- Step 7: Scrub the carbon away. Use a wooden scraper or a soft brush. Do not use a metal tool that might scratch the inside.
- Step 8: Let it dry completely. Then, put it back on the car.
Meanwhile, while the valve is off, peek into the intake manifold. If you see a lot of black gunk there, you might need a more serious EGR system cleaning.
Check the Federal Emissions Warranty Before You Pay
Federal law requires manufacturers to cover emission-related parts on 1995 and newer light-duty cars and trucks against defects. The EPA fact sheet on emissions warranties lists the EGR valve, EGR solenoid, thermal vacuum switch and the sensors and switches that control EGR flow as covered emission control parts.
| Coverage | Time and mileage (whichever first) | Examples from the EPA fact sheet |
| Emission control and emission related parts | 2 years or 24,000 miles | EGR valve, EGR solenoid, thermal vacuum switch, oxygen sensor, fuel injectors, PCV valve |
| Specified major emission components | 8 years or 80,000 miles | Catalytic converter, engine/emissions computer (ECU), onboard diagnostic (OBD) computer |
The warranty covers parts that fail because of a defect in materials or workmanship, and the manufacturer must repair or replace them free of charge within those limits. A valve that is simply caked with soot may not count as a defect, so ask the dealer for a written answer instead of assuming. Heavy-duty trucks and California vehicles can have different terms, and your owner’s manual or warranty booklet lists the exact coverage for your vehicle.
If your car is past 2 years or 24,000 miles, the federal emissions warranty generally will not help with an EGR valve (check your booklet, since California vehicles may have more coverage), which is why the cleaning-versus-replacement math above matters.
Is Professional Cleaning Worth It?
Sometimes, the cost of EGR valve cleaning at a shop is the best choice. For example, if the bolts are rusted, they might break. A mechanic knows how to fix broken bolts. Also, a professional EGR cleaning service often uses a machine to flush the whole system. This is much deeper than what you can do at home with a spray can.
Many shops also warranty their work, so ask how long the warranty runs in months and miles before you approve the job.
What to Ask a Shop Before You Approve EGR Work
A written quote that separates the diagnosis from the repair makes the price easy to compare with the RepairPal figures above: $181 to $265 labor and $489 to $632 total for a replacement.
- Which code is stored, and was the valve commanded open with a scan tool to confirm it is the problem?
- Were the EGR passages, cooler and sensors inspected, or only the valve?
- Is the quote for cleaning or replacement, and does it include a new gasket?
- If cleaning is quoted, what happens if the valve sticks again? Ask whether the labor is credited toward a replacement.
- What warranty covers the repair, in months and miles?
- Is the car still inside the federal emissions warranty (2 years or 24,000 miles for the valve)?
- Can you see the old part?
If a cleaning quote is close to the replacement price, replacement is usually the better value, because the labor to remove the valve is the same either way.
Saving Money on EGR Maintenance
You don’t want to pay the cost of EGR valve cleaning every single year. So, how do you keep it clean longer? First, use TOP TIER detergent gasoline; AAA research found non-TOP TIER gas left 19 times more intake valve deposits. Second, don’t let your car idle for a long time. Idling creates the most soot.
Thirdly, try to drive on the highway once a week. Higher speeds help blow out some of the carbon buildup. This is often called an “Italian Tune-up.” It may help, but it will not free a stuck valve.
Also, consider using an EGR cleaner additive every few months. Additives are a prevention step; they will not free a valve that is already stuck.
Conclusion
In 2026 the choice is between a low-cost DIY cleaning and a shop bill that is mostly removal labor, with RepairPal’s average replacement at $489 to $632. Confirm the code first, clean when the valve still moves freely and the problem is carbon, and replace when it sticks or the electrical side has failed.
If the car is still inside 2 years or 24,000 miles, ask the dealer about the federal emissions warranty before paying for either.
Related guides: more check engine codes explained, P0420 code: causes and repair costs and Mazda CX-5 Soft Brake Pedal Fix.
FAQs
How much does professional EGR cleaning cost in 2026?
Can I clean the EGR valve myself to save money?
How often should I clean my engine’s EGR valve?
What is the best cleaner for a diesel EGR valve?
What happens if I ignore a dirty EGR valve?
More Questions About EGR Valves
What does code P0401 mean?
P0401 means the engine computer has detected insufficient exhaust gas recirculation (EGR) flow. Causes include a clogged or stuck EGR valve, blocked passages, a plugged EGR cooler, or a faulty control part such as a vacuum switching valve or sensor.
Is the EGR valve covered under warranty?
The EPA lists the EGR valve as an emission control part covered against defects for the first 2 years or 24,000 miles on 1995 and newer light-duty vehicles. The engine computer is covered for 8 years or 80,000 miles. Check your warranty booklet for exact terms.
How can I tell if the EGR valve or something else is the problem?
With the engine idling, command the valve open using a scan tool. The engine should stumble, run rough or stall. If it does not, the valve or its passages are blocked, or the valve is not working.
Is it worth cleaning an EGR valve instead of replacing it?
Usually yes if the valve still moves freely and the fault is carbon, as with many P0401 cases. Replace it if it still sticks after cleaning, will not hold vacuum, or has an electrical fault. RepairPal’s average replacement is $489 to $632.
Will cleaning fix codes P0405 to P0409?
Rarely. P0405 to P0408 are EGR sensor A or B circuit low or high codes, and P0409 is an EGR sensor A circuit code. Check the sensor, connector and wiring before paying for a cleaning.
